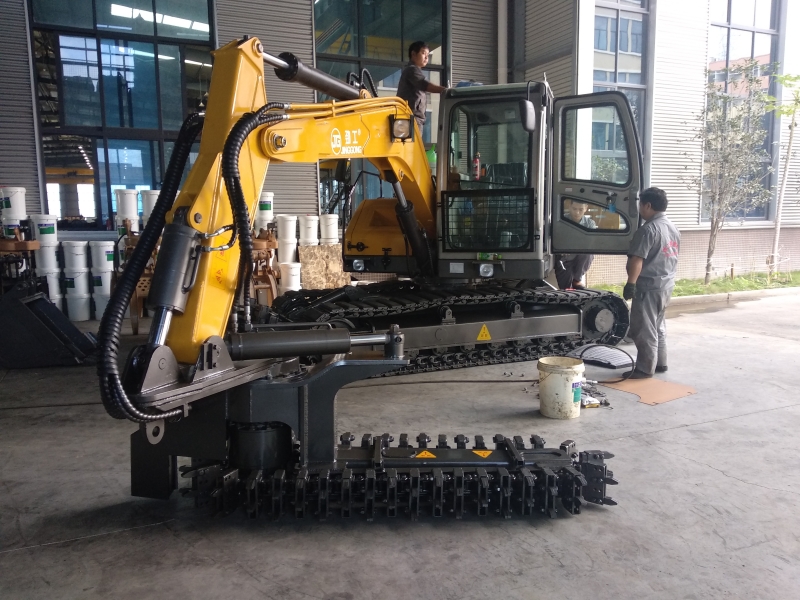

This Ballas♈t Cleaner Excav🗹ator specifically designed for use off-track cutting ballast, is a revolutionary system designed to undercut track without wasting valuable track time. scoops out contaminated gravel and mud and fouled ballast from beneath railroad tracks.
Tel/Whatsapp : +8618805957336
Fax : 13799243565Email : winny@fjjgjx.com
As one of the earliest designed and developꦅe♔d excavators in our company, JG-LT Ballast Cleaner provides comprehensive and mature techniques. Undercutting is frequently performed as an independent service for cleaning stretches of track. It is also deployed as part of larger maintenance of way and environmental projects.
| SPECIFICATIONS | ||||||||||
| BALLAST CLEANING ATTACHMENT | Rotation angle of ballast cleaning device | ≥270° | ||||||||
| Linear speed of ballast chain (high speed and low speed) | ≥30-60m/min | |||||||||
| Effective working radius of ballasting | ≥1750mm | |||||||||
| DIMENSIONS | (Length*width*height) Transport dimensions | 6100*2800*2650mm | ||||||||
| Axle base | 2600mm | |||||||||
| Track gauge | 1570mm | |||||||||
| Width of crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min. ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| Working efficiency | ≥10m/h | |||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8500kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated power | 48KW~55KW | |||||||||
| Rated speed | 2200r~2300r/min | |||||||||
