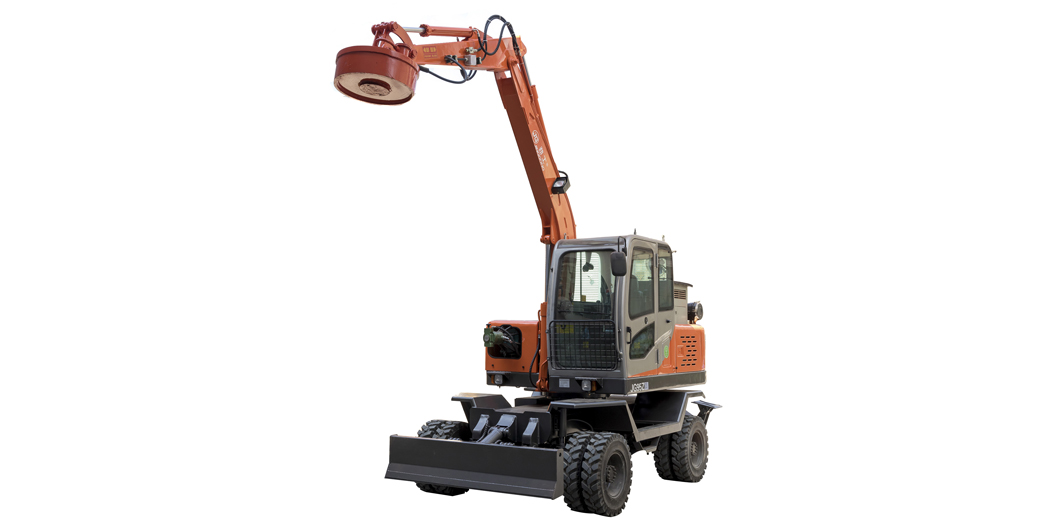

Magnet Round Lifting Electromagnet Excavator
| Electromagnetic Chuck Features
Excavator magnet used in conjunction with excavator or crane and are wid🌼ely used for handling and carrying pig iron, scrap,square billet, sheet, pipe and other ferromagnetic materials in steel making plants, rolling mills, scrap steel processing plants, large foundry workshops, shipyards, heavy machi🍨nery factories, steel warehouses, port terminals and stations.
| Main Parameters
| Length*width*height | 5800*2100*2850mm |
|
Rated Power |
48KW |
| Machine weight | 7000KG |
| Main Parts of Hydraulic Excavator
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.

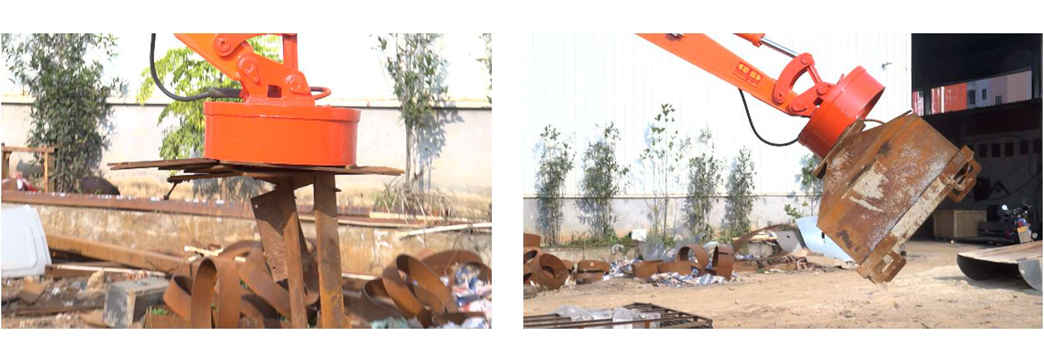

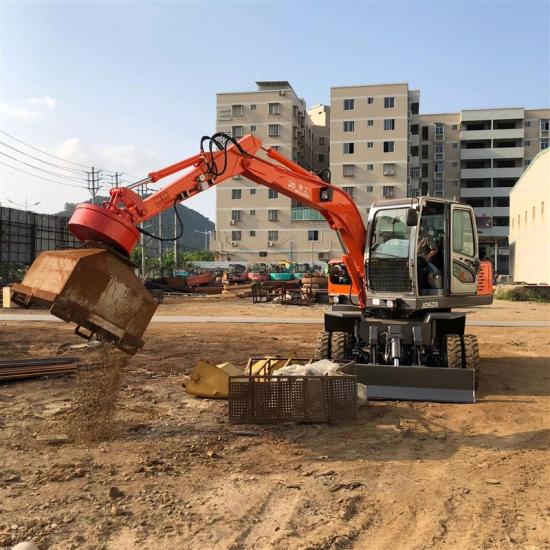

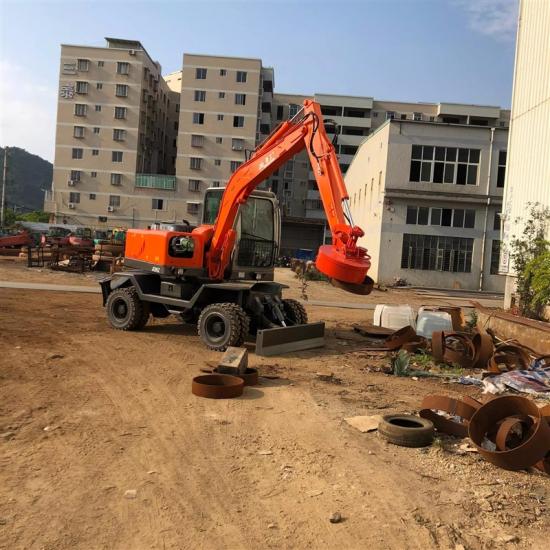

| Working Scene
| Why Choose Us
1.Strict quality management proไduce effective and stable products to meet customers' needs.
2. Strict detecting system and advanced inspection e꧒quipment.
3.Professional sales team, ꦗquality inspection & report, maritime logistics guidance.
4.We grants our clients a twel🍌ve-month-period or 2000-hours warranty for any machine purchased from us.
5.We offer perfect facilities and comfortable environment and can pr🦋ov𒁏ide training services to different users.
| Company
| Workshop Display
| Process
| Exhibition Show
| Certificates
FAQ:
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
Q: Do you have CE certificate ?
Q:Why should you buy from us𝓀 not from other suꦗppliers?
A:As we are a China leading manufacturer and exporter of wheel excavator,♈ crawler excavator, sugarcane harvester, sugarcane grabber loader, multifunctional excavator with almost over 20 years professional ex🍸perience, and exporting to many countries.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Diameter of eletric sucker | 800mm | |||||||||
| Maximum suction weight | 500kg | |||||||||
| Maximum Digging Reach | 6240mm | |||||||||
| Maximum Digging Depth | 3200mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6970mm | |||||||||
| Maximum Dumping Height | 4950mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 5800*2100*2850mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7000kg | |||||||||
| Engine model | YUCHAI 4FA65 | |||||||||
| Rated Power | 48KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 120L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
